One-stage High Performance AC/DC EMI Filter Single Phase Power Line
Filter
AC/DC EMI Filter:
YB12D2-10A-Q(R) is the EMI Filter. Its connection mode is fast-on
terminal. The maximum rated current up to 10 amps.are designed with
both common mode and differential mode performing high noise
suppression,one-stage filtering,good filtering effect.Typical
applications include Electrical and electronic equipment, Household
equipment, Automation equipment, Fitness machine, and Medical
equipment.
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB12D2-10A | D2 | 10 | Fast-on terminal |
| YB12D2-15A | D2 | 15 |
| YB12D2-20A | D2 | 20 | Wire |
| YB12D2-30A | D2 | 30 |
| YB12D2-40A | D2 | 40 | M4 screw |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Naming Rule:
| YB | 12 | D2 | - | 10A | - | Q |
| | | | | | | | | | | | |
| Our brand | Circuit | Dimension | | Current | | Output Connection |
| | 12:12 circuit | D2 | | 10A :10 amp | | Q:fast-on tab 250 |
| | | | | 20A :20 amp | | W:wire |
| | | | | 30A :30 amp | | S:M4 screw |
Features Of Single Phase Filter:
-- The rated current can be offered from 1 to 30 amps.
-- Various output selections such as M4 screw terminal,wire and
terminal block.
-- Designed one stage enhanced filtering to prevent the power
supply may produce interference
-- The compact size can be applied to various situations.
-- There are a variety of parts and combinations to meet different
customer's EMC tests
EMI Filter Application:
1. Electrical and electronic equipment
2. Medical equipment
3. Datacom equipment
4. Office automation equipment
Our Certificates:
Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
| Item | EMC/EMC Filter |
| Model | YB12D2-10A-Q(R) |
| Transfer Function | Low Pass |
| Package Type | |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~30A |
| Environmental Temperature | 40°C |
| Temperature Range | -25℃~+85℃ |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 0.4mA/115V,60HZ; 0.8mA/250V, 50HZ |
Electrical Schematic:

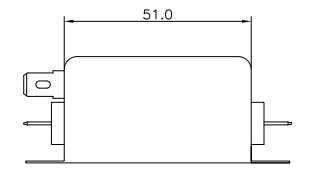

Mechanical Dimension(Unit: mm)

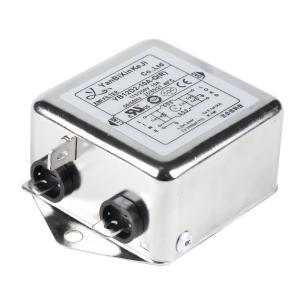

YB12D2-10A-Q(R) Filter Picture:
Packaging Specification:
Power Line Filter: CTN/80pcs
N/G W.: 14/15.3KG
Measures:0.565*0.285*0.205m
