YBX High attenuation M4 Screw Conection Three Phase Three Wire
Filter
Three Phase Four Wire Filter:
YX93G3-20A-S is the three-phase four-wire filter.Its
connection mode is the M4 screw, and the terminal block can be
selected.The maximum rated current up to 100 amps. High
reliability designed for industrial equipment usage with
Three-phase Three-wire filter or Three-phase Four-wire filter.Good
noise attenuation in both forward and reverse directions for common
mode and normal mode.Custom-specific versions are available on
request.
Features Of Three Phase Filter:
-- The rated current can be offered from 1 to 200 amps.
-- Various output selections such as terminal block,M4 screw
terminal.
-- Good noise attenuation in both forward and reverse directions
for common mode and normal mode.
-- High reliability designed for industrial equipment usage with
3-Phase 3-Wire and 3-Phase 4-Wire.
Product Parameters:
- Model: YX93G3-20A-S
- Output Mode: M4 Screw
- Rated Voltage: 380/520 VAC
- Rated Currents: Up to 200A
- Operating Frequency: 50/60Hz
- Hipot Rating (Line-To-Line): 1450VDC
- Hipot Rating (Line-To-Ground): 2250VDC
- Operating Temperature: -25 ~ +85°C
- Safety Compliance: CE
Typical Applications:
1. testing and measuring equipment
2. automation equipment
3. servo drives
4. lighting
5. telecom equipment
6. frequency inverters
7. motor drives
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX93G3-10A | G3 | 10 | M4 Screw |
| YX93G3-20A | G3 | 20 |
| YX93G3-30A | G3 | 30 |
| YX93G3-50A | G3 | 50 | Terminal Block |
| YX93G3-80A | G3 | 80 |
| YX93G3-100A | G3 | 100 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block
Naming Rule:
| YX | 93 | G3 | - | 20A | - | S |
| | | | | | | | | | | | |
| Our brand | Circuit | Dimension | | Current | | Output Connection |
| | 93:93 circuit | G3 | | 10A :10 amp | | S:M4 screw |
| | | | | 20A:20 amp | | T:terminal block |
| | | | | 30A:30 amp | | (R) resistance |
| | | | | 50A:50 amp | | |
YX93G3-20A-S Filter Picture:

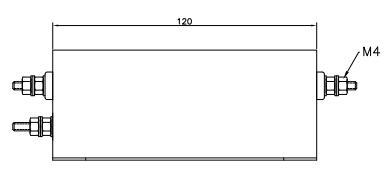

Physical Dimensions:
Electrical Schematic:
Characteristics:
(1) Voltage
Rating............................................................................................250/440VAC
(2) Current Rating:
A.@115VAC...............................................................................................
20A RMS Max.
B.@250VAC...............................................................................................
20A RMS Max.
(3) Oprating Frequency:50/60Hz
(4) Leakage Current: each line to ground
A.
115VAC/60Hz...........................................................................................
7mA Max.
B.
250VAC/50Hz...........................................................................................14mA
Max.
(5) Hipot Rating(for one minute)
A. Line to
ground............................................................................................
2250VDC
B. Line to
line..................................................................................................
1450VDC
(6) IR: 50M ohm A7 500VDC any input or output to ground
